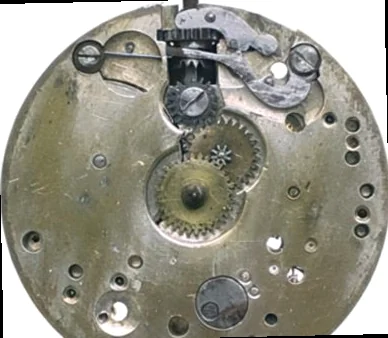

AM 220 Movement Specifications, Beat Rate & Dimensions |
|
Technical Caliber Datasheet
| Manufacturer | AM |
| Caliber Reference | AM 220 |
| Movement Type | Manual |
| Diameter (Lignes) | — |
| Diameter (mm) | 29.33 mm |
| Height / Thickness | 4.45 mm |
| Jewel Count | 15 Jewels |
| Beat Rate / Frequency | 18,000 BPH |
| Lift Angle | 51° |
| Power Reserve | 38 hours |
| Escapement | Swiss Lever |
| Production Period | 1920 |
Historical & Mechanical Notes
The AM 220 is a celebrated example of vintage precision engineering. Featuring 15 jewels and operating at 18,000 BPH, surviving examples are prized by collectors and restorers.
